Description
Standard Equipment :

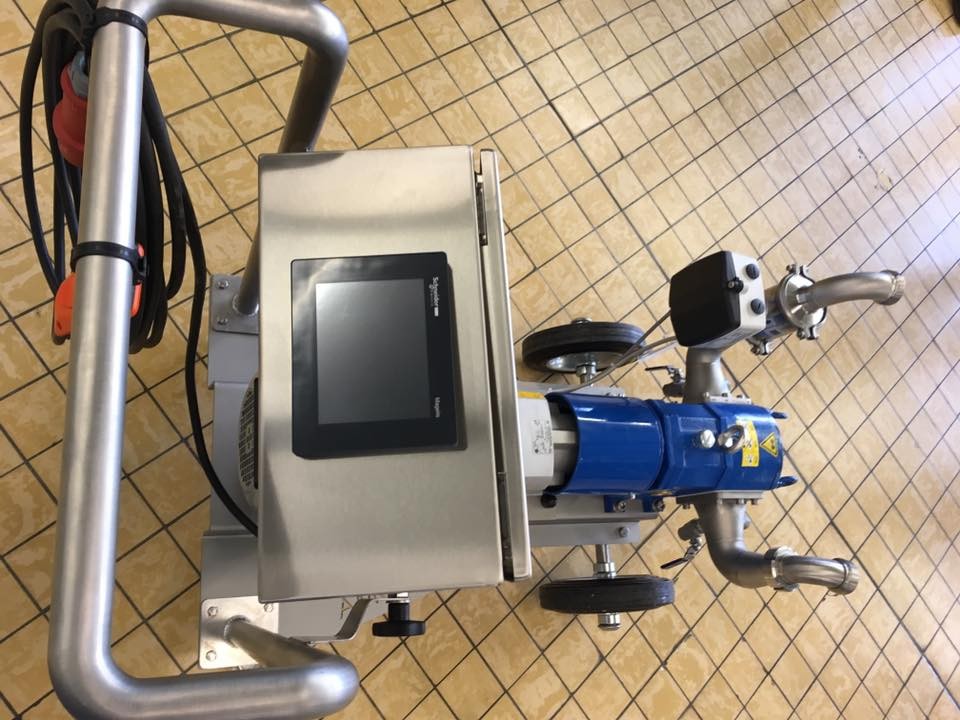

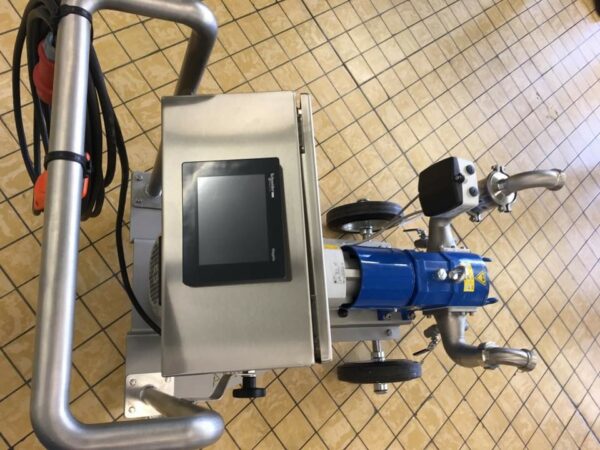

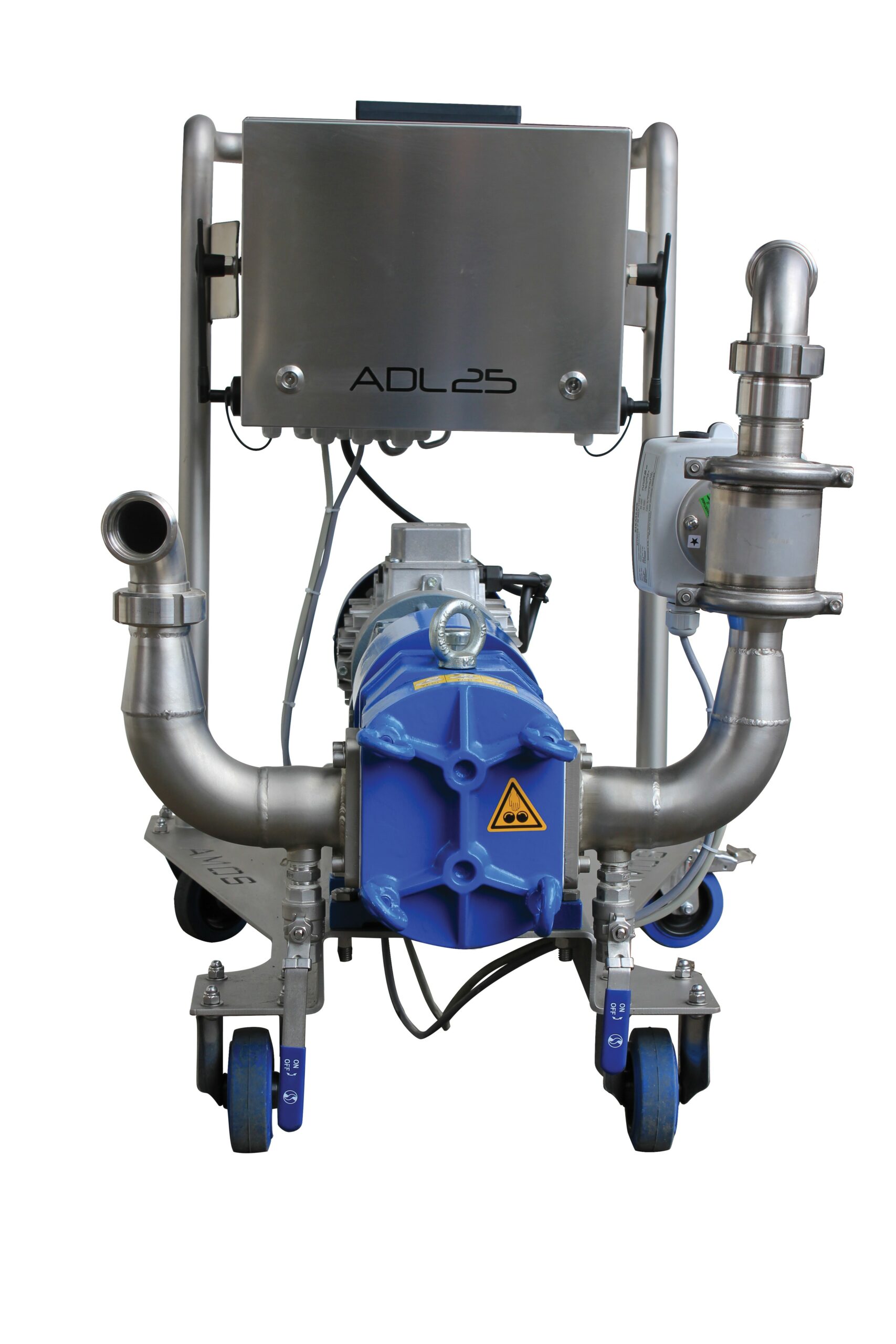

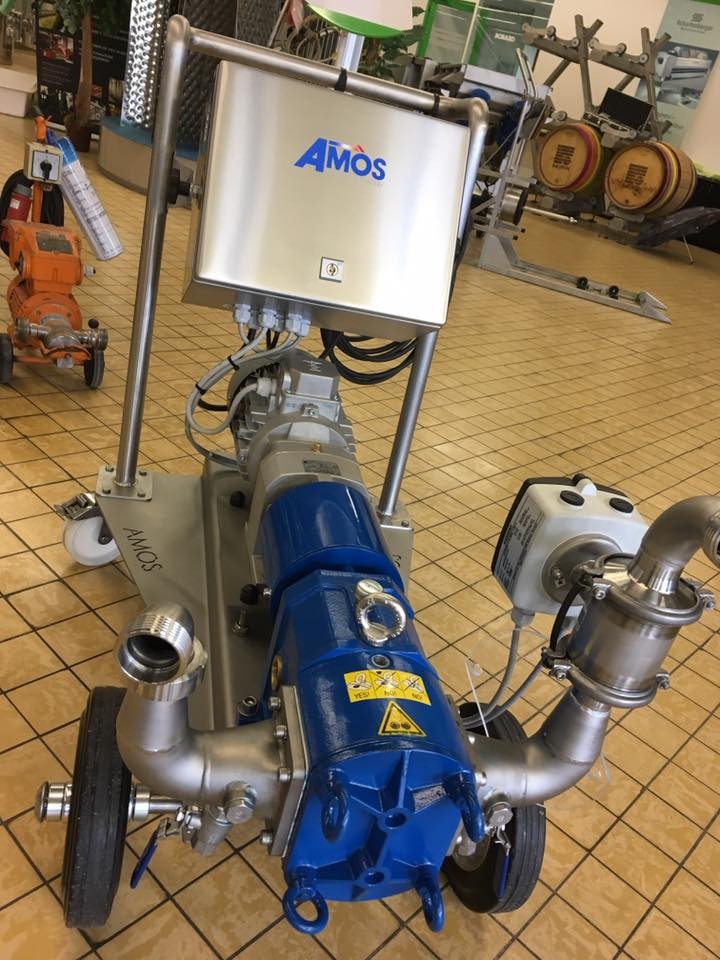

Pump on stainless steel trolley Stainless steel housing, molded in one piece EPDM lobes
Stainless steel enclosure in compliance with EC regulations
Advantages :
One-piece molded pump body (not screwed) for better robustness.
Large pump entry window for full solids passage (max. Size 25 mm for ADL25 and 50 – max. Size 40 mm for ADL100, 200 and 300).
Front flange with quick opening by 4 wing nuts for a simplified visual inspection.
Instantaneous change of the lobes, axial and radial wear plates without dismantling of the piping or misalignment of the motor.
Large variety of lobes depending on the application Patent M.I.P (Maintenance In Place): lobes, wear plates, ½ removable shells without disconnecting the motor or disassembling the flanges.
Oil-lubricated mechanical seal, maintenance-free.
OPTIONS :
Radio control 6 functions (on / off – reversing L / R – Setting flow rate +/- and counter reset) IP 67 (Model
2016)
AMOS integrated flowmeter – for precision work (intonation / assembly, etc) and programming of the volume to the liter

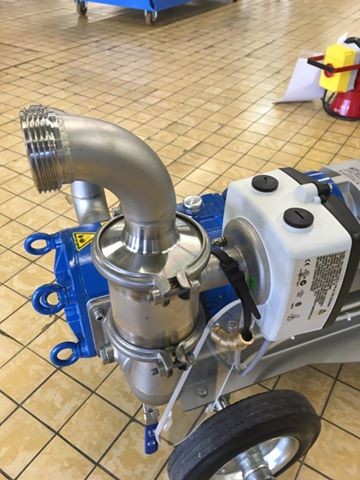

Kit Butterfly valve Stainless steel, automatic motorized for sealing off the pump when stationary
