Description
Standard accessories
-
Tank shell and tank bottom made of AISI 304 stainless steel, surface IIId (2R), marbled outside
-
Tank top made of AISI 316 stainless steel, surface IIId (2R), marbled outside
-
With lifting lugs
-

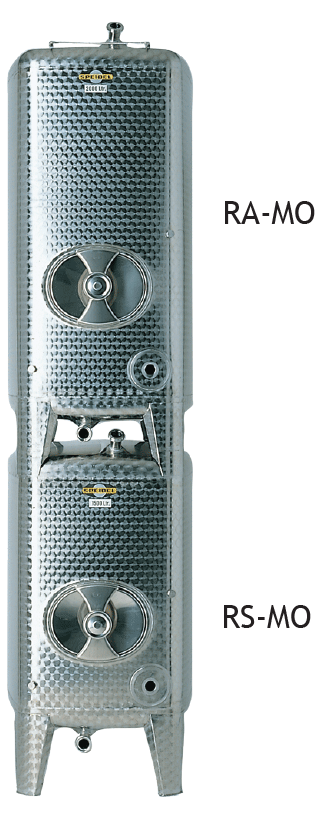

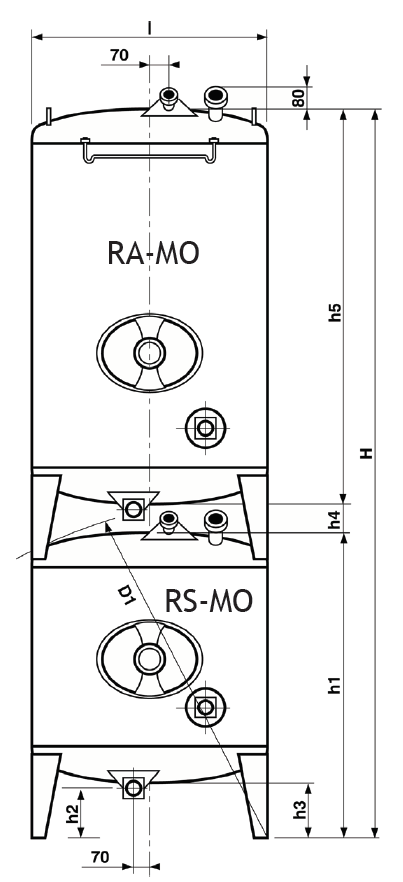

Base tank from 2,000 mm tank height upwards and stacking tank with ladder safety bow
-
Vaulted, stable tank top with moulded-on forward up-slope for complete filling and ventilation assuring a very small air contact area
-
Moulded connection neck with filling and vent neck, external thread NW 50 Rd 78 x 1/6″
-

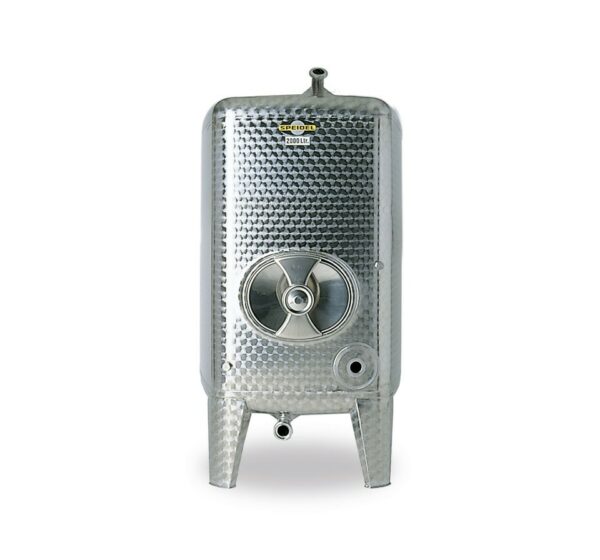

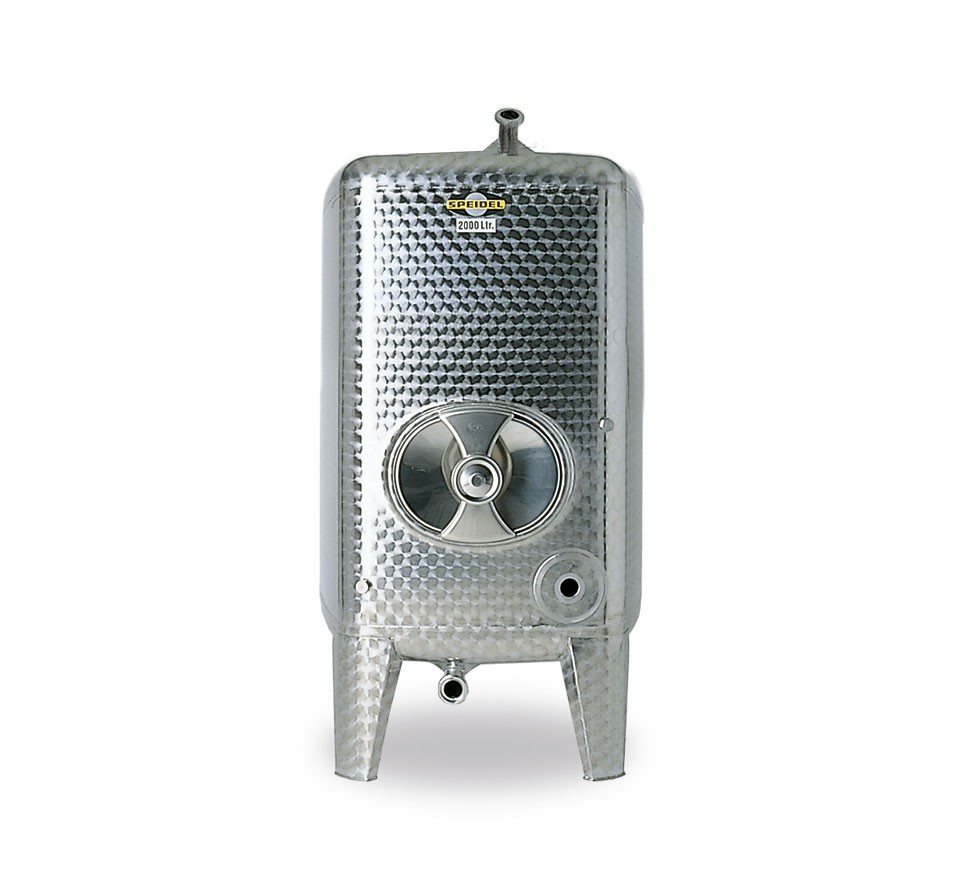

Free-standing base tank on 4 welded-on stacking legs
SAMPLING
-
Weld-on thread NW 10 DIN with sealing cap (for the installation of sample tap)
MANHOLE
-
Stable manhole neck seamlessly moulded from the tank shell, 420 x 320 mm, door with butterfly bow and hand wheel
RACKING OUTLET
-
With welded-on reinforcing plate with drilled hole 48 mm ø (to hold flap valve Gr. 37 or weld-on thread NW 40, NW 50 DIN )
FILL LEVEL
-
Weld-on thread NW 10 DIN with sealing cap including fastening points at tank shell (for the installation of fill level indicator)
BOTTOM OUTLET
-
Vaulted, stable tank bottom with integrally moulded forward down-slope for complete draining with moulded connection neck, inhibiting suction effect with bottom outlet neck NW 50 DIN 11851
We advise you to add accessories (valves ..)
