Description

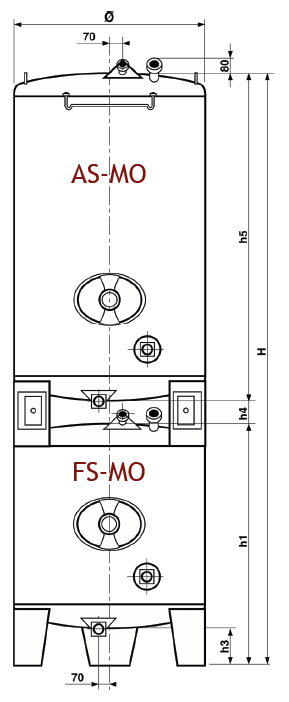

If you don’t need to stack immediately: no problem! The base tank can be extended with a stacking tank also at a later date. Provided that the maximum total volume per stack is not exceeded, the two tanks can be combined without problems even when they are different sizes.
Standard accessories
-
Tank shell and tank bottom made of AISI 304 stainless steel, surface IIId (2R), marbled outside
-
Tank top made of AISI 316 stainless steel, surface IIId (2R), marbled outside
-
From tank-ø of 1,000 mm upwards with lifting lugs
-
Tanks from 2,000 mm tank height upwards and stacking tanks with ladder safety bow
-
Vaulted, stable tank top with moulded-on forward up-slope for complete filling and ventilation assuring a very small air contact area
-
Moulded connection neckwith filling and vent neck internal thread NW 50 Rd 78 x 1/6″
-

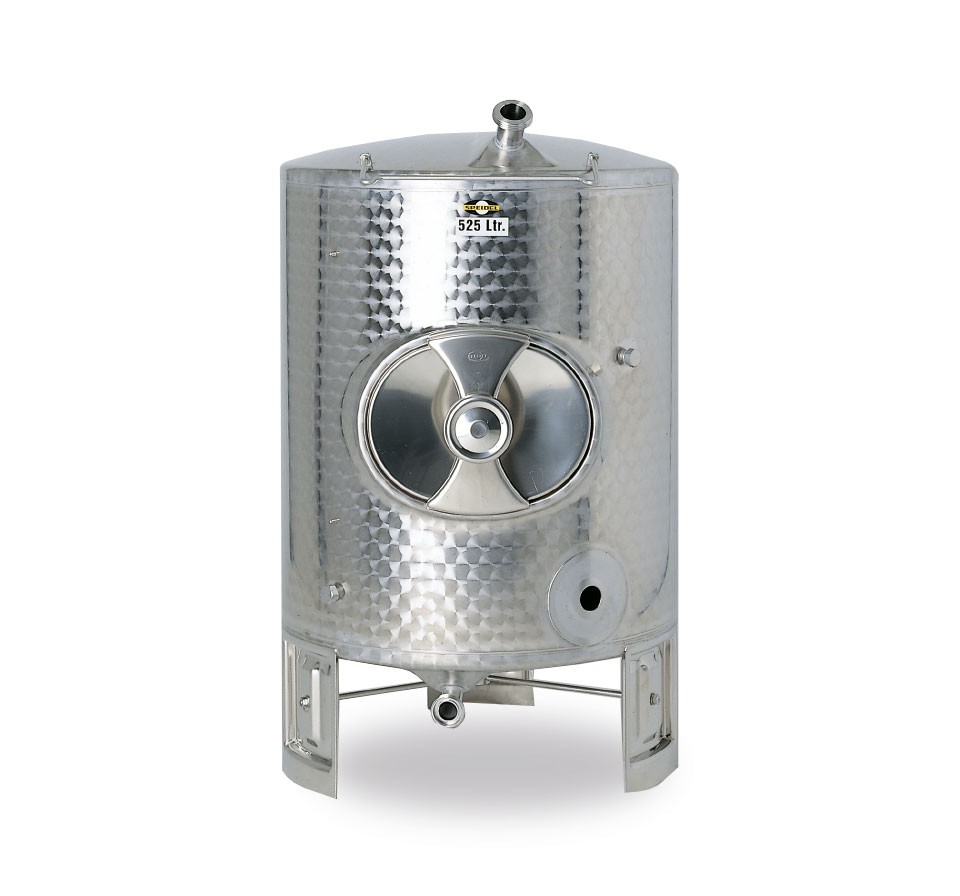

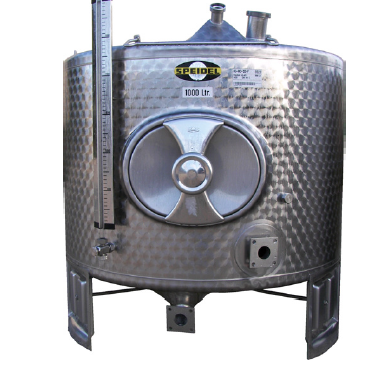

Free-standing base tank on 3 welded-on legs
-
Stacking tank with 3 welded-on stacking legs
SAMPLING
-
Weld-on thread NW 10 DIN 11851 with sealing cap (for the installation of sampling tap)
MANHOLE
-
Stable manhole neck seamlessly moulded from the tank shell
-
Up to 320 litres capacity 320 x 250 mm
-
From 525 litres capacity upwards 420 x 320 mm
-
Door with butterfly bow and hand wheel
RACKING OUTLET
-
Plain surface with drilled hole ø 48 mm (to hold flap valve Gr. 37 or weld-on thread NW 40, NW 50 DIN )
-
Up to 320 litres capacity fixed racking outlet plain surface
-
From 525 litres capacity upwards with welded-on reinforcing plate
FILL LEVEL
-
Weld-on thread NW 10 DIN with sealing cap including fastening points on tank shell (for installation of fill level indicator)
BOTTOM OUTLET
-
Vaulted, stable tank bottom with integrally moulded forward down-slope for complete draining with moulded connection neck, impeding suction effect with bottom outlet neck
-
Up to 820 mm ø NW 40 DIN
-
From 1.000 mm ø NW 50 DIN
