Description

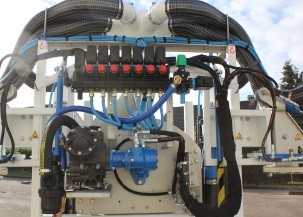

Spray cell TB New Model 2015 for straddle, allowing treatment face to face.
Features :
• Monobloc chassis – double centrifugal ventilation
• volute progressive flow injected
• centrifugal clutch
• hydraulic drive (minimum hydraulic flow: 65l / min)
• protection grille output according to ISO standards
• suction / discharge filtration
• Sulfate pump (70 l / min / 20 bar pressure)
• hydraulic motor drive independent of the ventilation circuit,
• Possibility of treatment without the turbine,
• Absorbed power 20CH
• washbasin,
• INOX RAMPS:
– 6 rows equipped with:
– 6 soft descents TB
– 3 heights, 6 outputs mixed air / nozzles,
• The nebulizer system (TX-V nozzle spray) Mixed (air / jet TX-V)
allows the product to be sprayed through the nozzle and accompanied by the flow of air facilitating the penetration of the product into the foliage.
• Integral lifting of 40 cm of the whole
• independent hydraulic lift G / D,
• Hydraulic folding G / D independent,
• Painted steel frame structure
