Description
Features :

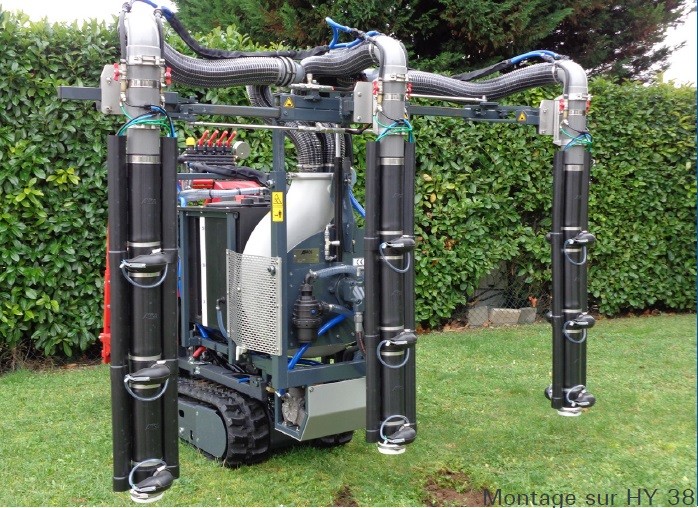

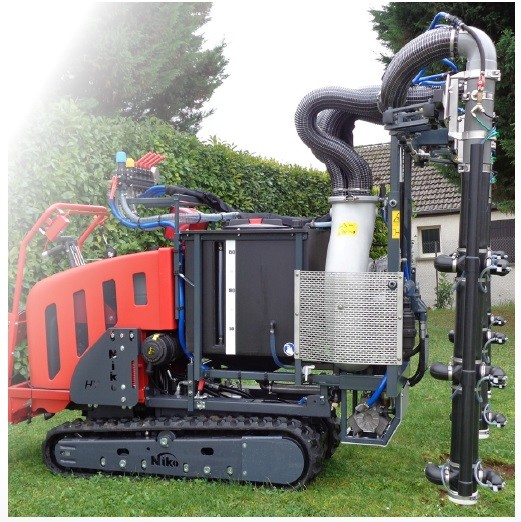

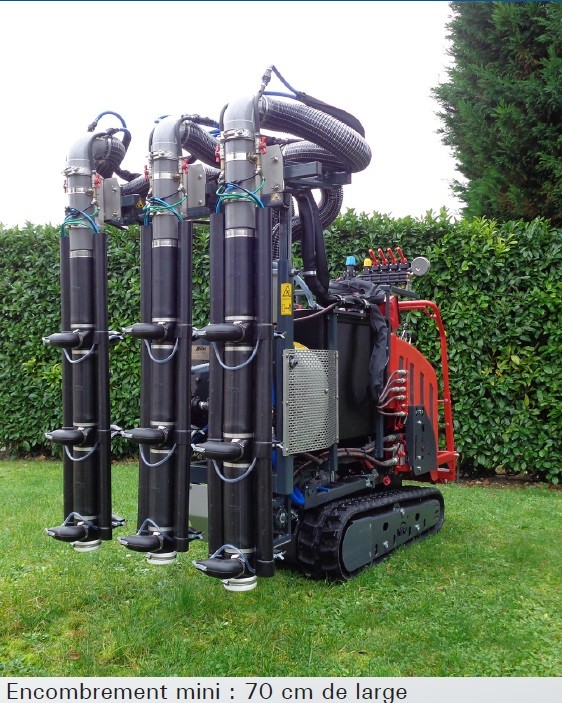

Processing Unit DL 3 Rows mounting chase 40 HY seating , including:
Piece steel frame painted with quick hitch
Turbine ventilation centrifugal clutch with a 10 hp maximum power consumption
Pump flow 34l/min sulfated 3 pistons with valve 15bar security
Hydraulic drive the turbine and pump sulfater 38l/min flow
Ramp Variable geometry with 3 soft descents TB ( ref. unit =
1311128420/2016) + 6 outputs heights diffuser fins adjustable and obstructable
Hydraulic and independent adjustment of the left and right slopes for a working
width of 0.90m to 1.30m
Total lift ramp 40cm requiring a double effect
Folding ramp D / G requiring two double effects
Group cuts sections with general electric valve safety valve + pressure + 4 valves with offset sections to cut back the outer rows ½ right and left
180L capacity polyethylene tank with agitation calibrated feedback device and a remote drain on tank
3L tank washing hands
Stand on quick release wheels, adjustable height.
